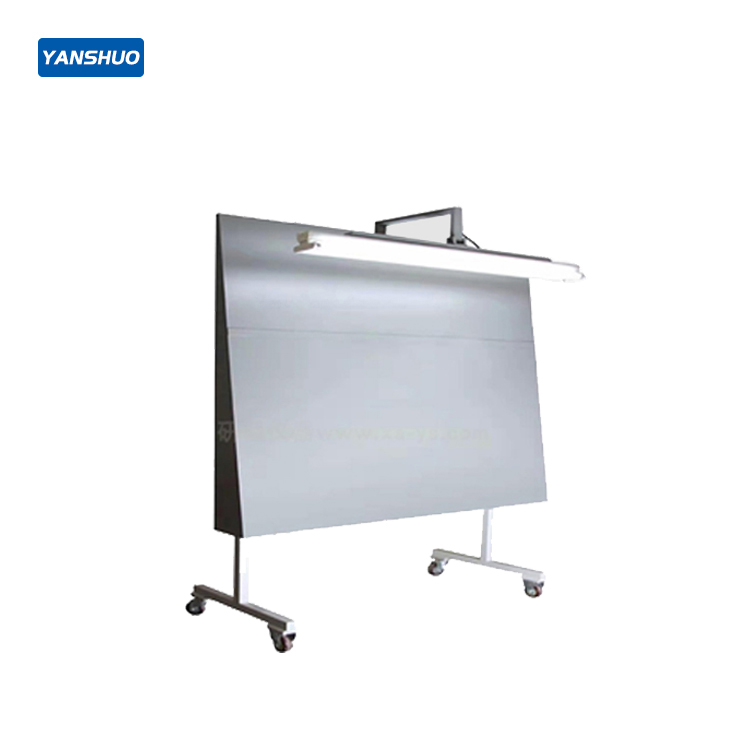

AATCC Garment Observation Board
ăScope of applicationă:Evaluate the flatness of fabric appearance, seam flatness and crease retention.
[Meet the standard]:
AATCC 888 (Smoothness of Fabric Seams After Multiple Washes and Ironing at Home)
AATCC 88C (Retention of fabric wrinkles after multiple household washes and ironing)
AATCC 124 (Appearance of knitting after multiple washes and ironing at home)
AATCC 128 (Wrinkle Recovery of Fabrics, Appearance Methods)
AATCC 143 (Appearance of clothing after multiple washes and ironing at home)
AATCC 178 (Self-Assessment and Rating) also complies with: NOXT TM24/TM30 standards
ăTechnical Parametersă:
1. Overall dimensions: 1.83Ă0.28Ă1.83m (LxWxH)
2. Weight: 62KG
ăOperation Methodă:
1. On the standard light source and evaluation board, the appearance of the specimen is evaluated and graded by comparing it with the standard drawing card.
2. The assessment should be conducted in a dark room with only the instrument light source, and any reflection of ambient light will affect the rating results.
3. The rating observation board is equipped with two cold light sources with a length of 2400mm or 1200mm.
4. The device is equipped with switch control and uses a high-frequency power control device.
5. The rating observation board can be installed on the wall or on the sliding trolley, or customized according to user requirements.

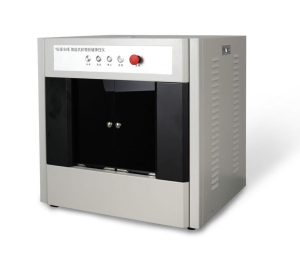

Why choose our crease recovery tester?
Yanshuo has 22 years of experience in the industry, which means our customers can rely on the reliability of our products. Long-term experience has endowed us with deep knowledge, which is reflected in the innovation and quality of our products. We have built strong relationships with over 1000+ customers, making your feedback and needs an important part of our strengths. We are also very good at solving any problems you may have. These are the key reasons to choose us as a high-quality tester.
